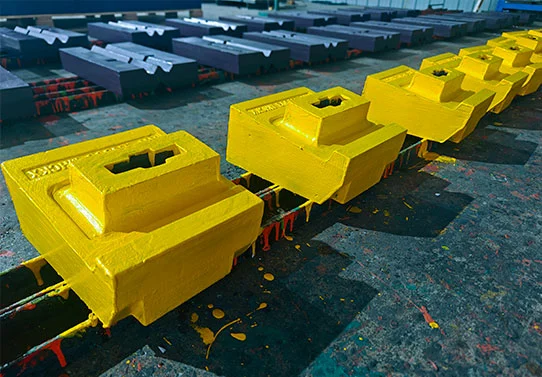

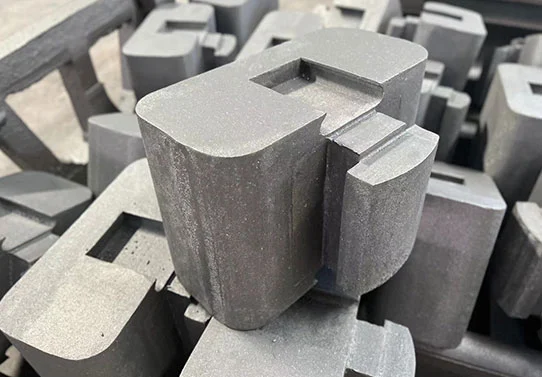

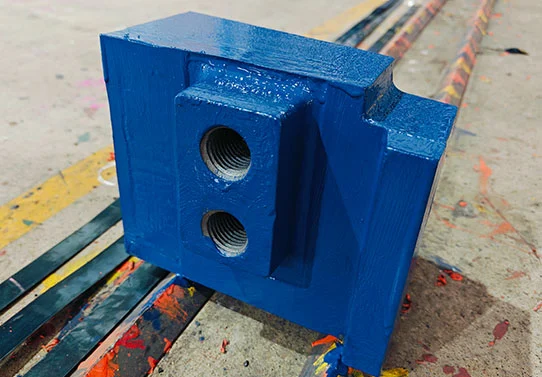

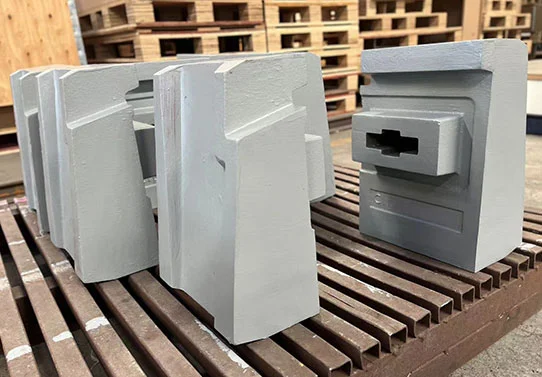

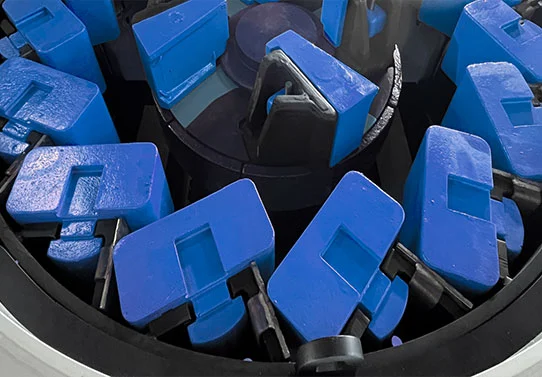

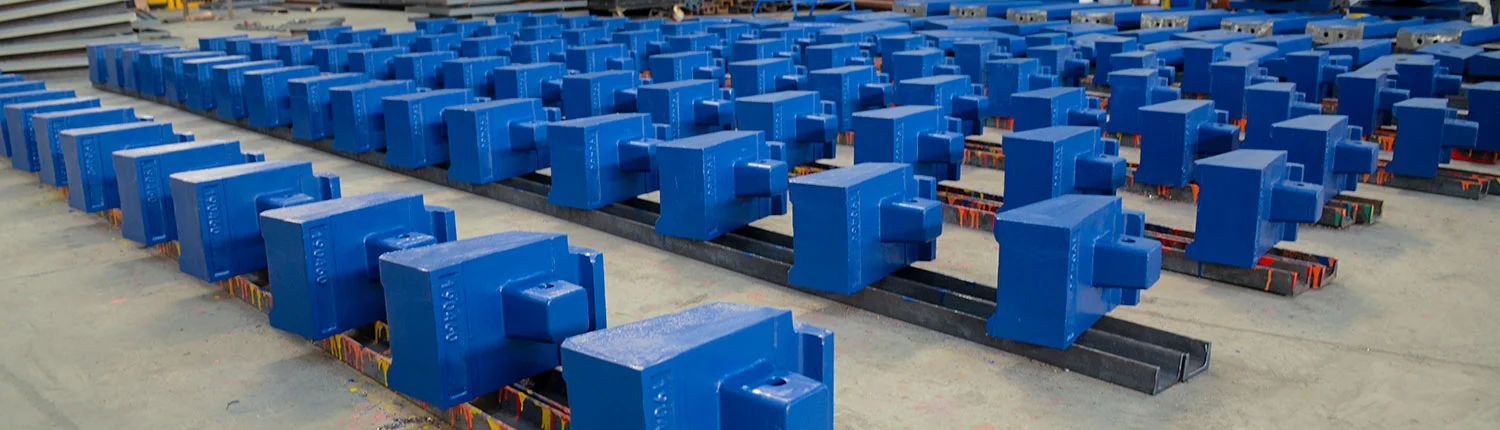

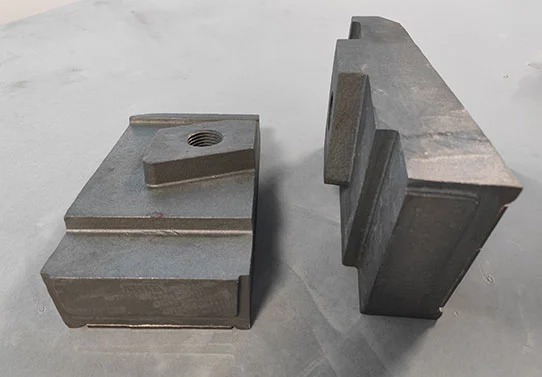

Maximize your crusher’s uptime with Sunwill’s premium impellers (shoes) and anvils. Designed specifically for Vertical Shaft Impactor (VSl) crushers, our components are engineered to withstand the most abrasive environrnents in the aggregate and mining industries.
High-Chrome Casting: Our precision-cast chrome plates offer an optimized balance of hardness and impact toughness, providing reliable performance for standard crushing applications.

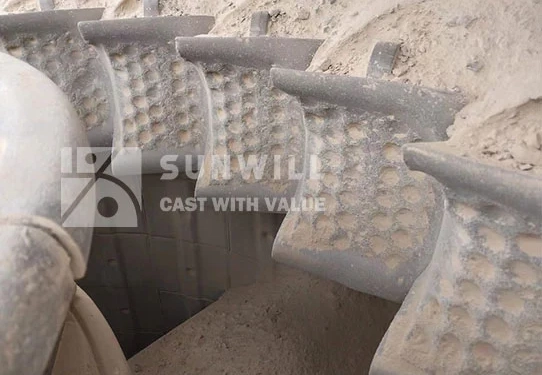

Ceramic Inlay Technology: For extreme abrasion, our Chrome + Ceramic solution integrates high-hardness ceramic inserts into the chrome matrix. This composite technology significantly extends service life compared to raditional alloys, drastically reducing the frequency of part replacements.
| Impactor | Wear Parts | Part number | Weight/Kg | Weight/lbs |
| CA65/1400 | Anvil | CR02-382-350-1000 | 44 | 96.8 |
| CA80/90/2000, 100/2050 | Anvil reversible | CA-2 | 44.5 | 97.9 |
| CA90/100/105/2000 | Impeller | ER24 | 39 | 85.8 |
| CA90/100/2000 | Impeller | CA-60 | 35 | 77 |
| CA100/2500 | Impeller | 38.4 | 84.48 | |
| CA125/2500 | Anvil double vaulted | CJCA-55 | 235.2 | 517.44 |
| CA125/2500 | Anvil single vaulted | CA-55 | 117.1 | 257.62 |
| CA2050/2030 | Impeller single rib | CJ04431-873(CA-054) | 56.6 | 124.52 |
| CA2050/2030 | Impeller double ribs | CJ04431-873(CA-054) | 57.9 | 127.38 |
| CA100 | Impeller | CAN6456 | 39.1 | 86.02 |
| CA100 | Vaulted anvil | CC2C | 182.1 | 400.62 |
| CA105 | Impeller | CA-17 | 49.7 | 109.34 |
| CA105 | Impeller | 105 | 53.8 | 118.36 |
| CA105 | Vaulted anvil | 105-6C | 117 | 257.4 |
| CA155 | Impeller | 5510C | 86.9 | 191.18 |
| CA155 | Impeller | 5510C modified | 85 | 187 |
| CA80/90/2000 Rotor 32″ | Wall plate | CJ08700-340-05 | 6 | 13.2 |
| CA80/90/2000 Rotor 32″ | Feed tube | CJFT0400 | 86 | 189.2 |
| CA80/90/2000 Rotor 32″ | Top cover | CJ08700-340-27 | 33 | 72.6 |
| CA80/90/2000 Rotor 32″ | Feed plate | CJ04431-850 | 27 | 59.4 |
| MAG2100 | Impeller | QCA313 | 44 | 96.8 |
| MAG2100 | Impeller | QCA102 | 38.3 | 84.26 |
| MAG2100/2400 | Impeller | 49.5 | 108.9 | |
| MAG2100/2400 | Anvil | 57.7 | 126.94 | |
| MAG2100 | Anvil | QCA054 | 54.1 | 119.02 |
| MAG2400 | Edge Liner | 11.8 | 25.96 | |
| MAG2700 | Impeller | QCA299H2 | 50-53 | 110-114.4 |
| MAG2700 | Impeller | QCA339 | 44.5 | 97.9 |
| MAG2700 | Anvil | 59 | 129.8 | |
| ISC072 | TIP upper liner | ISC-07202-5 | 6.1 | 13.42 |
| ISC072 | TIP low liner | ISC07207-5 | 4.3 | 9.46 |
| ISC072 | TIP low ramp liner | ISC07208-5 | 6.6 | 14.52 |
| ISC072 | Impeller shoe | 07018DXH | 38.2 | 84.04 |
| ISC072 | Feed disc | 07146BH | 60.5 | 133.1 |
| ISC072 | Outer table liner | 08163R-5 | 16.1 | 35.42 |
| ISC072 | Anvil | 07310AH | 30.9 | 67.98 |
Please fill in your details and we will be getting back to you within 24 hours.
Tips on getting quick and accurate quotes from us. We’d appreciate if you could provide the following in your inquiry:
1. Details of contact
2. Details of inquiry
https://www.sunwillmachinery.com/wp-content/uploads/2026/06/51.webp
530
800
admin
https://www.sunwillmachinery.com/wp-content/uploads/2024/07/logo.webp

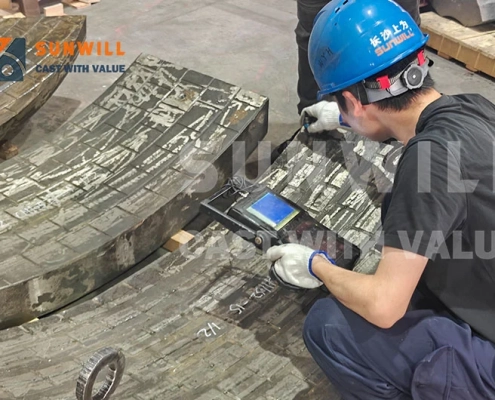

admin2026-08-06 10:49:142026-08-06 10:49:14Wear Parts Quality Control: Foundry Inspection Guide
