TiC-Inserted Manganese Steel Toothed Roll Crusher Segments: Extend Wear Life by Over 70% – Direct from Source Foundry

Toothed roll crushers (tooth roll crushers) are critical in coal processing, mining, quarries, cement, and aggregate industries for crushing medium- to low-hardness brittle materials such as coal, coke, coal gangue, and ore. The counter-rotating toothed rolls deliver shearing force for effective size reduction — yet abrasive feeds accelerate wear on standard segments, causing frequent replacements, prolonged downtime, and increased maintenance expenses.

Sunwill Machinery, a dedicated source foundry specializing in crusher wear parts, engineers toothed roll crusher segments with advanced materials to maximize uptime. Our premium solution: Mn18Cr2 manganese steel segments with Titanium Carbide (TiC) inserts, providing more than 70% wear life extension in primary toothed roll crushers.

Key Materials for Toothed Roll Crusher Segments

Tailored options based on crushing stage and feed conditions:

• Mn18Cr2 Manganese Steel — Outstanding impact toughness for high-shock primary applications, though prone to faster abrasion.
• Mn18Cr2 + TiC Inserts — Manganese matrix with embedded Titanium Carbide rods/particles in high-wear zones (tooth tips/edges). Wear life >70% longer than standard Mn18Cr2 — dramatically cutting changeout frequency while preserving throughput.
• Alloy Steel — Balanced impact and abrasion for secondary crushers.
• Chrome White Iron — Highest abrasion resistance for tertiary/fines stages, but more brittle.

Note: TiC gains vary by insert quantity, size, placement, and tooth profile adjustments. We customize for your specific crusher model.

How TiC Inserts Enhance Wear Resistance

TiC creates a composite: ultra-hard inserts (Vickers ~1500–2000 HV) combat abrasive particles (e.g., silica in coal/ore), while manganese steel absorbs impacts and work-hardens to avoid fracture. This excels in primary crushing of abrasive feeds, extending service intervals and reducing cost per ton crushed (CPT).

Industry Benchmarks and Real-World Validation

Industry examples demonstrate the power of TiC reinforcement. In a demanding application at a coal mine in Russia’s Far East (using a leading European-brand roll crusher), standard Mn14 segments lasted only 14 days. Upgrades to Mn18Cr2 achieved 16 days, and Mn18Cr6 reached 21 days. The breakthrough came with Ø14mm x 60mm TiC rods embedded in an enhanced Mn18Cr2 matrix (with molybdenum and rare earth elements for better toughness), plus a flat-top tooth profile. This delivered 39 days of service life — a 178% increase over the original Mn14, surpassing expectations and leading to a bulk order of 35 complete sets (1,680 pieces). Benefits included no cracking or breakage, consistent throughput, stable product size, and major reductions in unplanned downtime.

Sunwill’s >70% extension claim is conservative and based on our internal testing plus customer feedback — ensuring reliable, achievable results across global operations. As a source foundry, we deliver similar performance with full process control for traceability and quality.

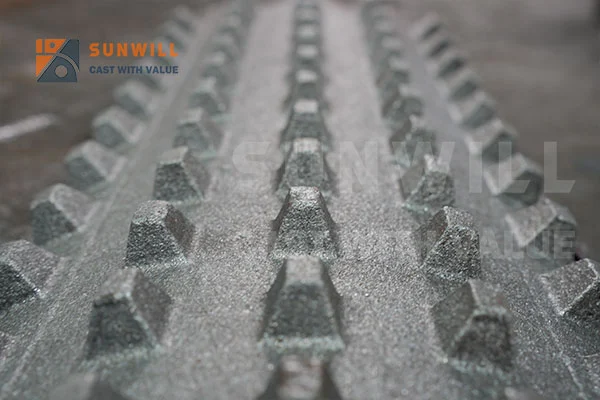

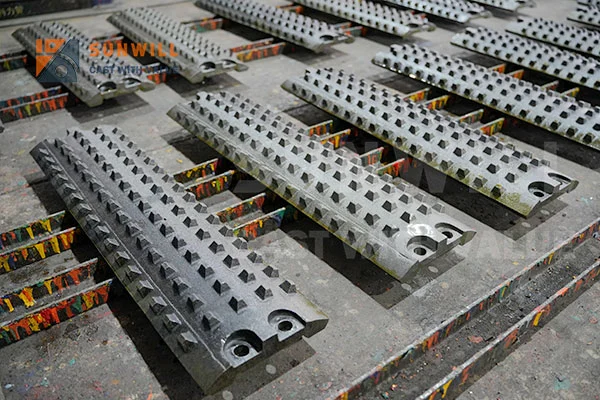

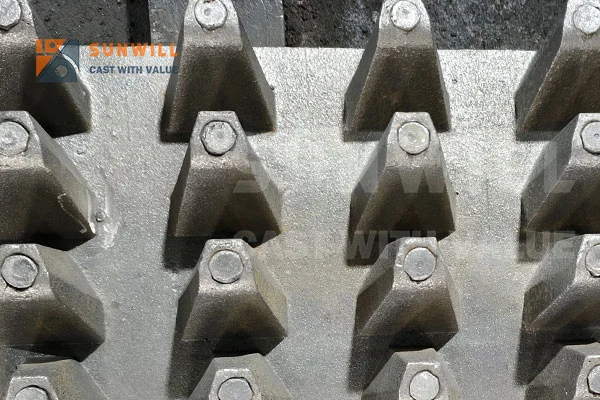

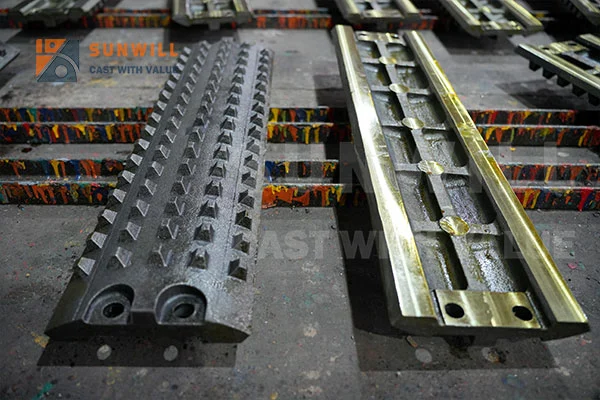

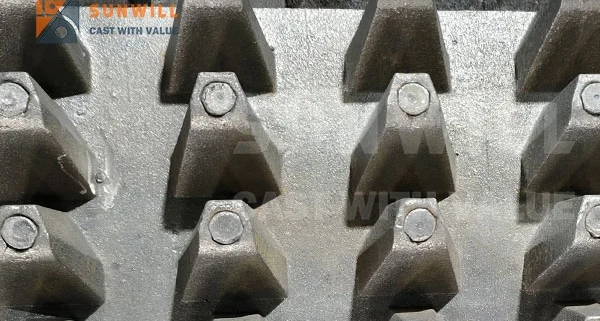

(These show close-ups of TiC-embedded manganese segments — similar to our toothed roll designs with embedded carbide patterns on tooth surfaces.)

Why Choose Sunwill as Your Source Foundry?

Direct Supply — No intermediaries: in-house TiC embedding, casting, heat treatment, and QC for consistent quality and factory pricing.
Custom TiC Optimization — Tailored insert layouts, tooth geometry, and alloys to fit your crusher and abrasiveness.
Fast Response & Trials — Small-batch testing; rapid global delivery.
Quality Standards — ASTM-compliant; hardness, impact, and metallographic testing on every piece.
Proven Results — 20–40% lower downtime and CPT in many coal/mining cases.

Upgrade Your Crusher Performance Today
If segment wear is limiting your operations, contact us for a free consultation, custom TiC proposal, sample, or quote — response in 24 hours.
Email: info@sunwillmachinery.com
Product Page: https://www.sunwillmachinery.com/wear-parts/toothed-roll-crusher-segment
[REQUEST A QUOTE] — Share your crusher model, feed details, and current wear life for personalized advice.
Sunwill Machinery – Source Foundry for Lasting Crusher Wear Solutions. Crush more, replace less!

FAQ

What is the typical wear life improvement with TiC inserts in toothed roll crusher segments?
Over 70% in primary applications vs. standard Mn18Cr2; industry cases show up to 178% in highly abrasive coal feeds.

Is the Russian Far East case applicable to my operation?
Yes — especially for abrasive coal/gangue; we adapt TiC design to match your conditions for comparable gains.

How does Sunwill ensure TiC quality?
Full source foundry control guarantees traceability and performance consistency.
